Ø4 inch Pipes

A shiny, cylindrical metal pipe with a welded seam around its middle, isolated against a white background.
A shiny, cylindrical metal pipe with a welded seam around its middle, isolated against a white background.
Add to Quote

Our 4 Inch Weld Pipe Specimens are circumferential butt-welded reference specimens manufactured with a Single V weld preparation for realistic NDT inspection, training, qualification, and procedure validation. Controlled discontinuities can be incorporated according to specific inspection requirements.

applications

  • UT inspection

  • PAUT inspection

  • TOFD inspection

  • MT & PT inspection

  • Radiographic Testing (RT)

  • Eddy Current Testing (ET)

  • NDT training and qualification

  • Inspection procedure validation

  • Technique evaluation and demonstration

Available Dimensions

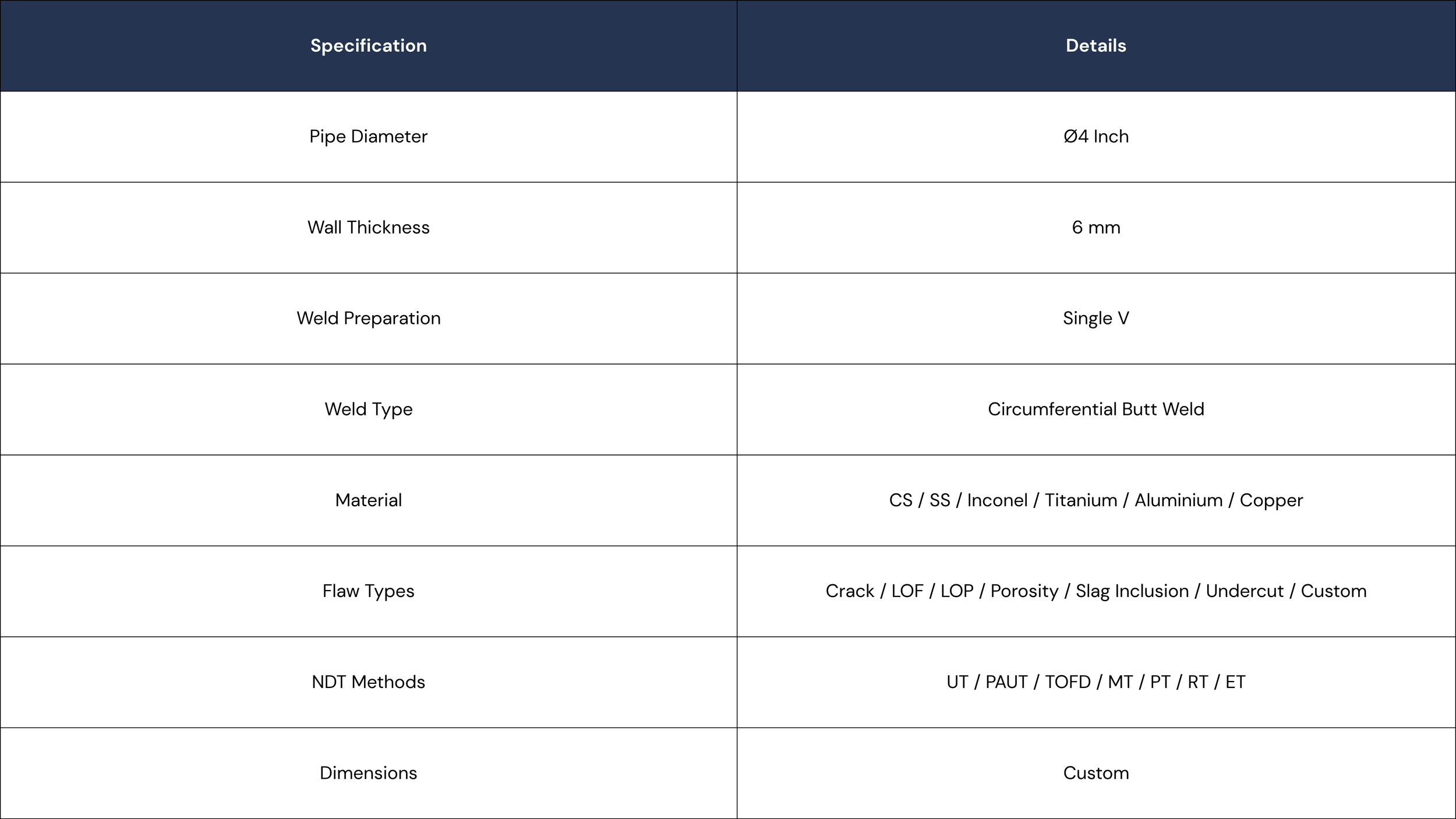

A detailed technical specification table for a pipe with columns for parameters like pipe diameter, wall thickness, weld preparation, weld type, material, flaw types, NDT methods, dimensions, and respective details.

*Custom dimensions can be discussed based on training or inspection requirements.
