Cruciform Joints

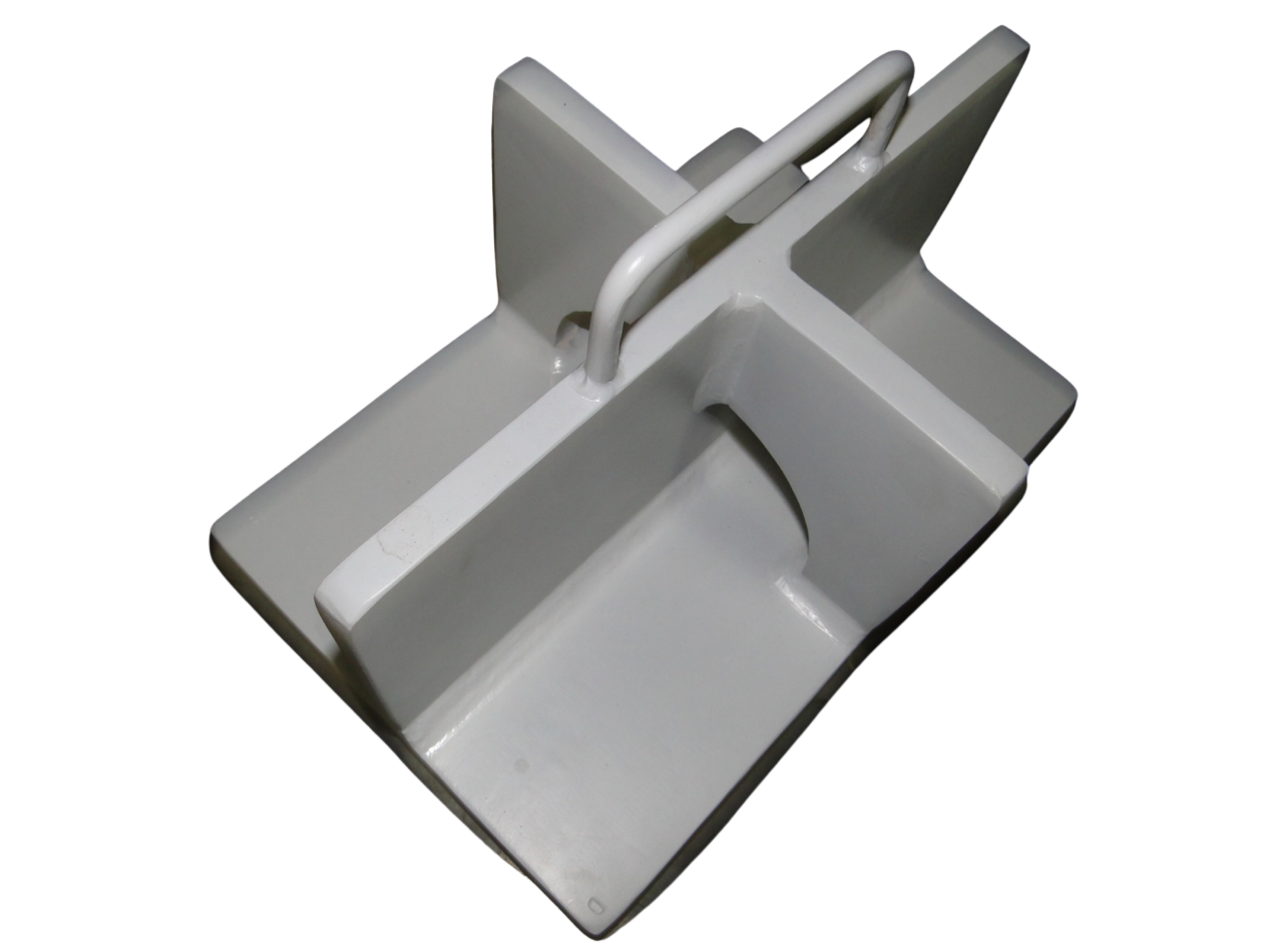

A white metal mechanical support with a sturdy base and vertical arms, possibly part of a larger machine or equipment
Add to Quote

Our Cruciform Joint Weld Specimens are fillet-welded reference specimens designed for NDT inspection, training, qualification, and technique evaluation. They incorporate controlled weld discontinuities to provide realistic conditions for inspection and flaw detection.

Available in standard and customized configurations, these specimens can be manufactured to meet specific material, dimensional, weld, and flaw requirements.

applications

  • Penetrant Testing (PT)

  • Magnetic Particle Testing (MT)

  • Radiographic Testing (RT)

  • Eddy Current Testing (ET)

  • NDT training and qualification

  • Weld inspection and evaluation

  • Inspection procedure validation

  • Technique demonstration and development

Available Dimensions

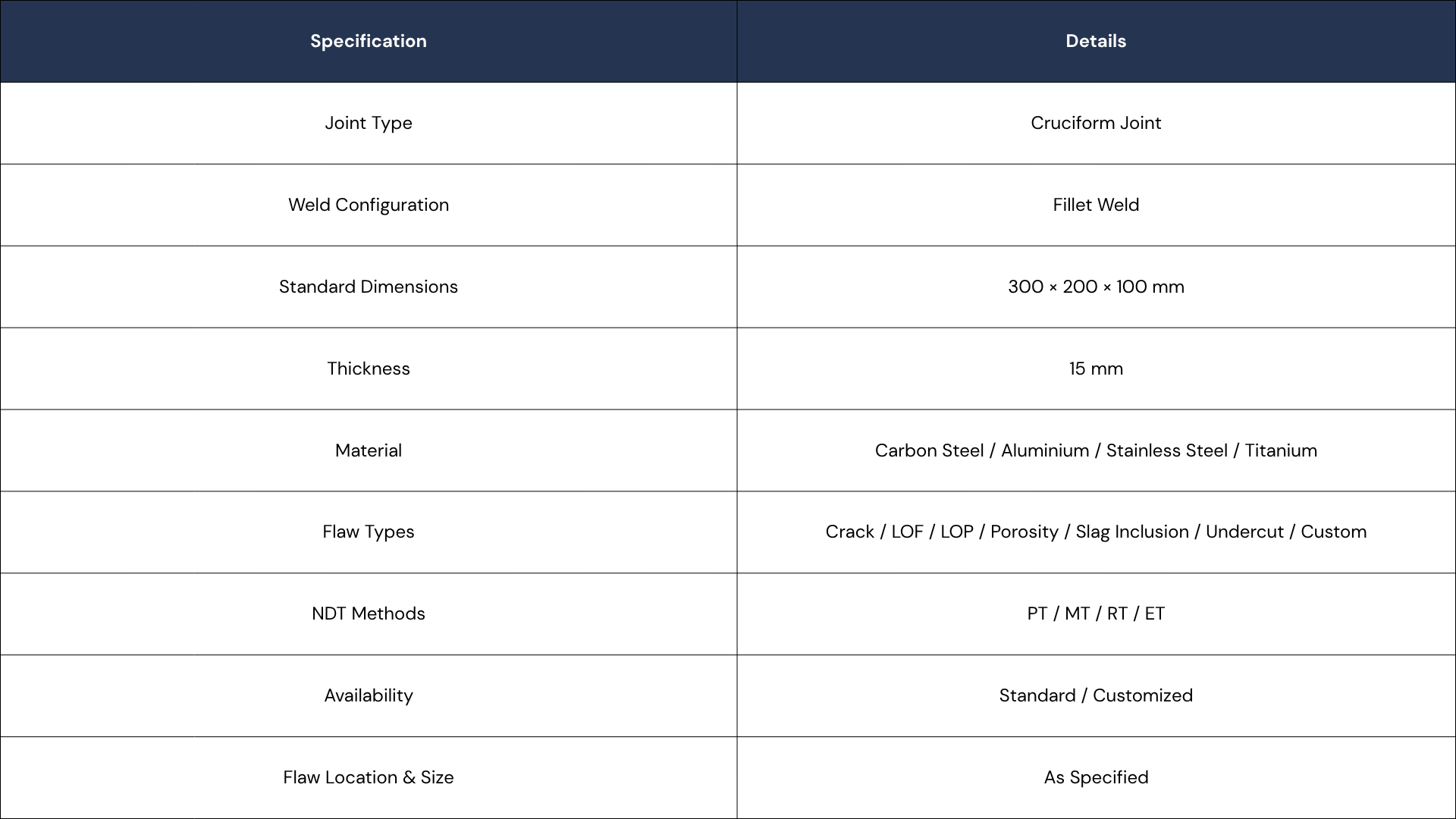

A technical specification table detailing joint type, weld configuration, dimensions, material, flaw types, NDT methods, availability, and flaw location and size.

*Cruciform Joint specimens can be manufactured according to customer requirements, including material, dimensions, weld configuration, flaw type, flaw location, and flaw size.
