ISO 19675 Block

A metallic black car spoiler with mounting holes on a white background.
A metallic black car spoiler with mounting holes on a white background.
Add to Quote

The ISO 19675 Calibration Block is a precision-manufactured steel reference block designed for the calibration and verification of ultrasonic testing equipment used with Phased Array Ultrasonic Testing (PAUT).

The block is manufactured in accordance with the requirements specified in ISO 19675 for dimensions, material, manufacture, surface finish and ultrasonic properties. It provides a standardized reference for establishing reliable and repeatable PAUT inspection performance.

applications

  • PAUT equipment calibration and verification

  • PAUT probe and system setup

  • Time-corrected gain (TCG) verification

  • Angle-corrected gain (ACG) verification

  • Verification of beam characteristics

  • Ultrasonic velocity verification

  • Assessment of material attenuation

  • PAUT inspection of welds and components

  • Routine inspection and equipment performance checks

Available Dimensions

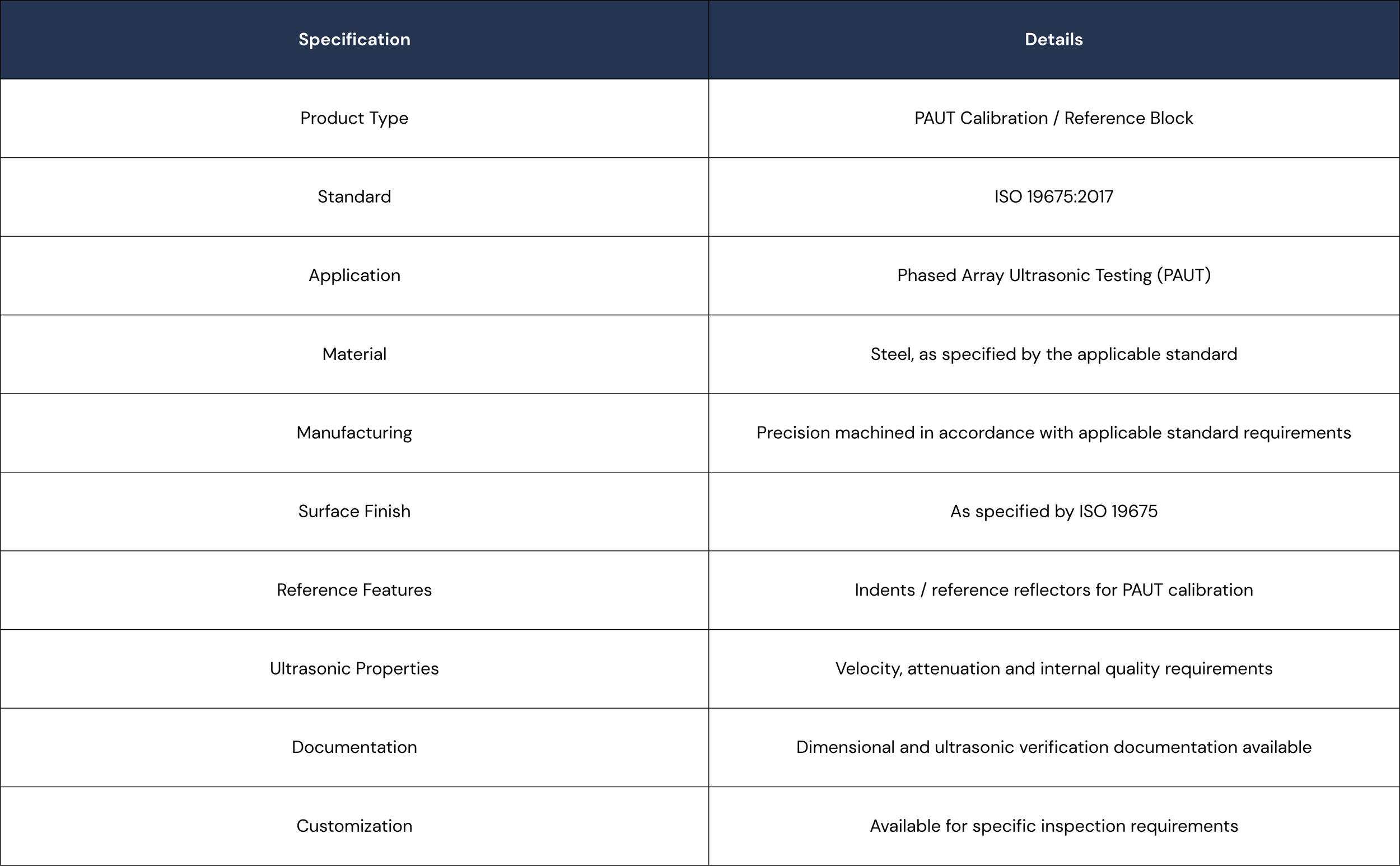

A detailed technical specifications sheet for a PAUT calibration/reference block, including standard, application, material, manufacturing, surface finish, reference features, ultrasonic properties, documentation, and customization information.

*The ISO 19675 standard specifies requirements for the dimensions, material and manufacture of the steel calibration block. Specific block dimensions and configuration should be supplied according to the applicable standard and customer requirements.
