Node TKY Joints

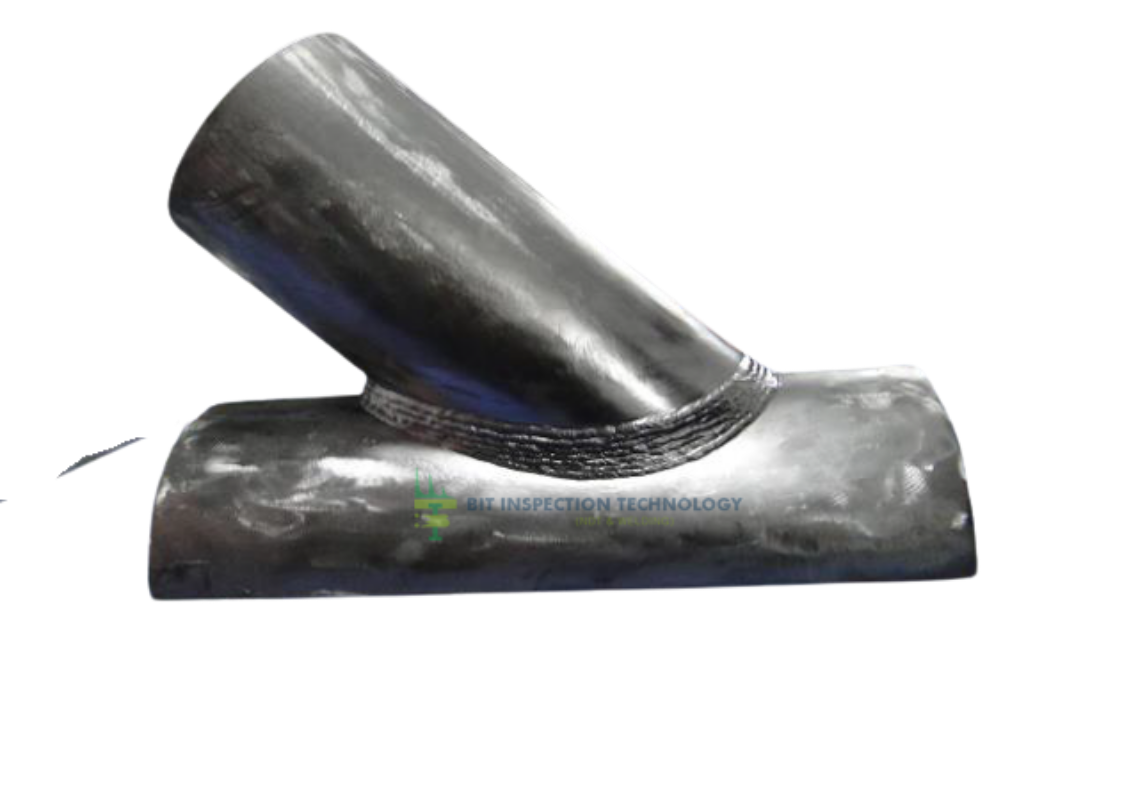

Close-up of two metal objects, one placed on top of the other, with a logo that reads 'BIT INSPECTION TECHNOLOGY' in the center.
Add to Quote

Our Node TKY Joints are precision-manufactured inspection specimens designed for Ultrasonic Testing (UT) and Eddy Current Testing (ET) of tubular welded connections. They can be manufactured to match the required pipe diameters, wall thicknesses, joint angles and inspection configuration.

  • UT inspection of TKY joints

  • Eddy Current Testing (ET)

  • Weld inspection and evaluation

  • Technique and procedure development

  • NDT training and demonstration

  • Inspection system validation

applications

Available Dimensions

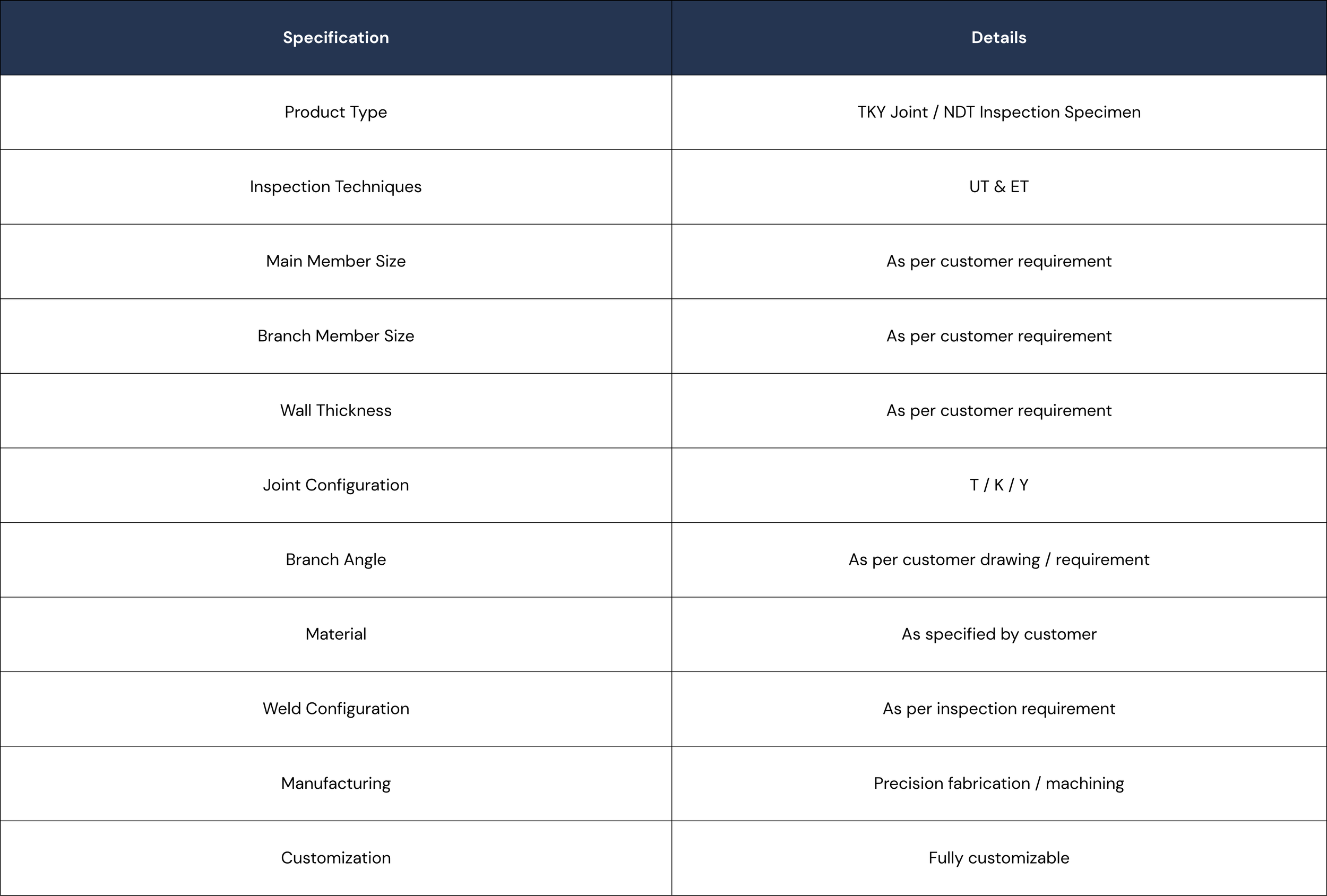

A table listing specifications for a TKY joint or NDT inspection specimen, including product type, inspection techniques, main and branch member sizes, wall thickness, joint configuration, branch angle, material, weld configuration, manufacturing, and customization details.

*TKY joints are manufactured according to customer-supplied drawings, inspection plans, specifications or procedures, including required dimensions, angles, materials and weld configuration.
