PAUT Angular Resolution Block

A metallic card or sheet with small holes along the right edge and the text "BIT INSPECTION TECHNOLOGY" and "www.bitindtindia.com" printed on it.
Add to Quote

The PAUT Angular Resolution Block is a precision reference block designed to evaluate the angular resolution and beam separation of PAUT systems. It uses closely spaced reference reflectors at defined angles to assess the system's ability to distinguish adjacent indications.Available in standard and customized configurations, these specimens can be manufactured to suit specific material, dimensional, weld, and flaw requirements.

applications

  • PAUT angular resolution evaluation

  • Beam separation assessment

  • Probe and system performance verification

  • Sectorial scan performance checks

  • PAUT system characterization

  • Procedure development and qualification

Available Dimensions

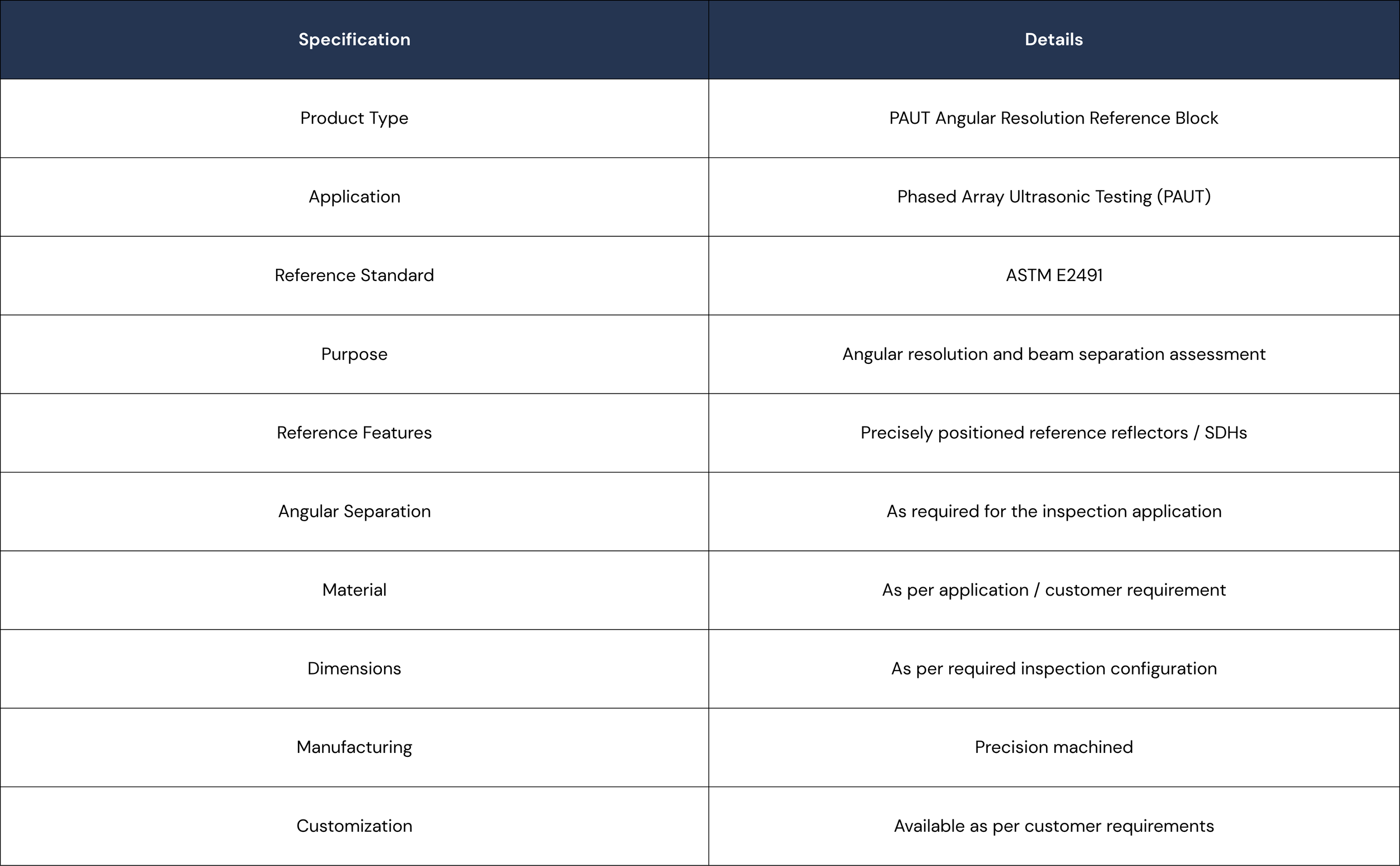

Table with technical specifications including product type, application, reference standard, purpose, reference features, angular separation, material, dimensions, manufacturing, and customization details.

*Reflector configuration, angular separation, dimensions and material can be customized according to the applicable procedure and customer requirements.
