PAUT Steering Resolution Block

Close-up of a metallic surface with the text 'BIT INSPECTION TECHNOLOGY' and 'www.bitndtindia.com' printed on it.
Add to Quote

The PAUT Steering Resolution Block is a precision reference block designed to evaluate beam steering and resolution performance of phased array ultrasonic testing (PAUT) systems. It uses defined reference reflectors to assess signal response at different steering angles.

applications

  • PAUT beam steering assessment

  • Angular and linear resolution evaluation

  • PAUT probe and system verification

  • Signal response assessment at different steering angles

  • PAUT system performance checks

  • Procedure development and qualification

Available Dimensions

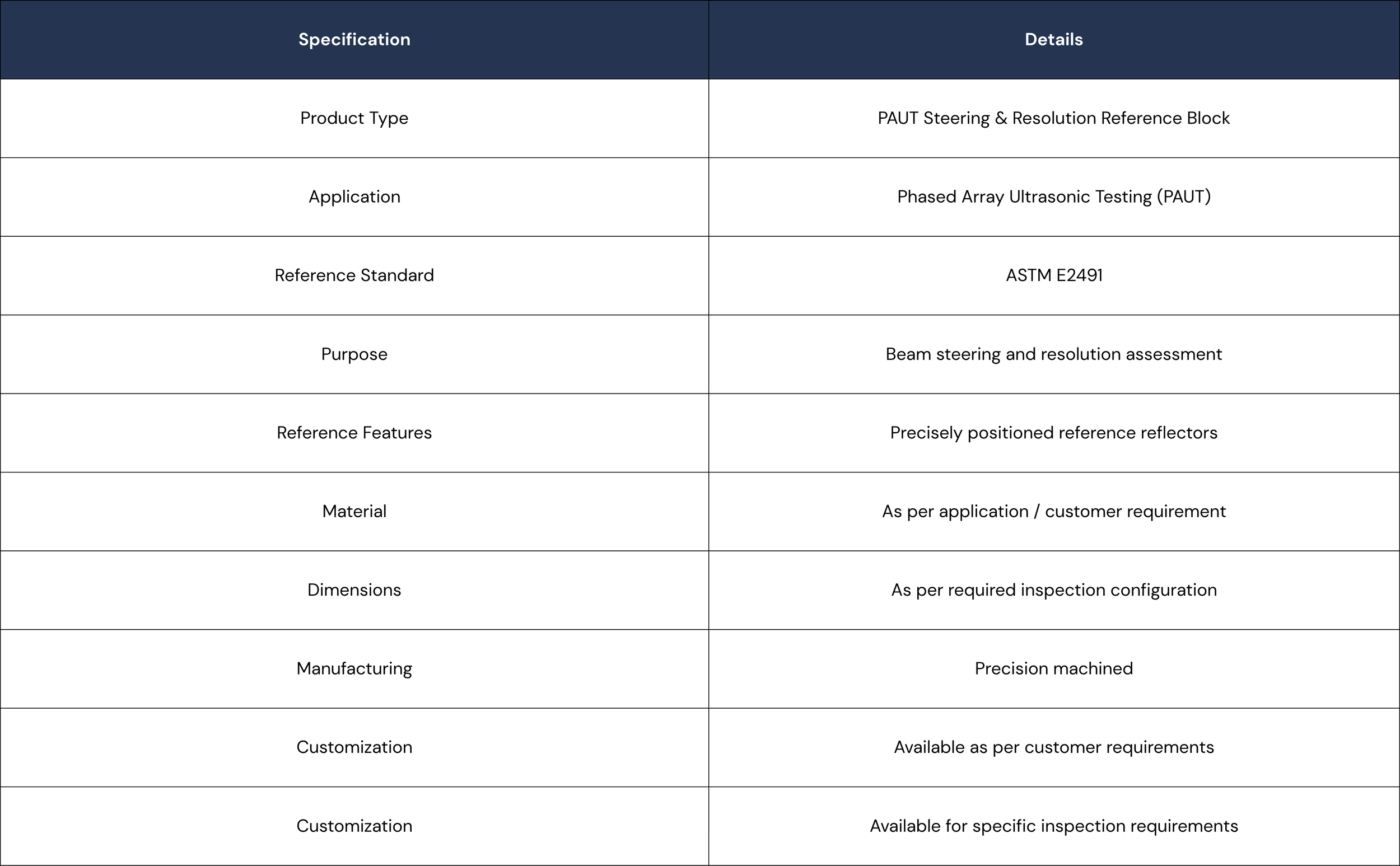

Table showing specifications for PAUT Steering & Resolution Reference Block, including application, reference standard, purpose, reference features, material, dimensions, manufacturing, and customization options.

*Block dimensions, reflector configuration and material can be manufactured according to the applicable inspection procedure, specification and customer requirements.
