Pipe Calibration Blocks

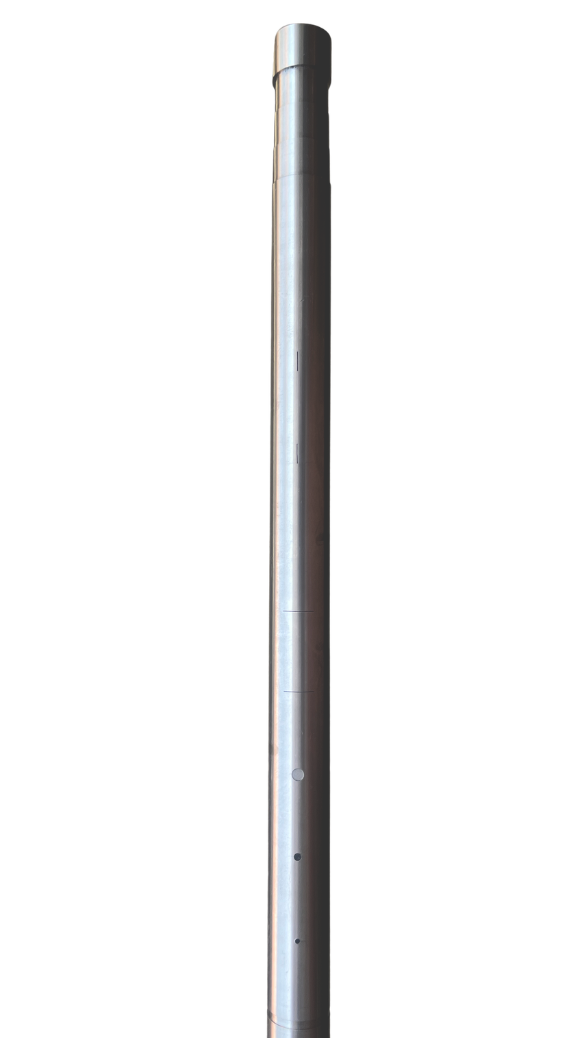

A tall, cylindrical metal pole standing upright isolated on a white background.
Add to Quote

Our Pipe Calibration Blocks are precision-manufactured pipe sections used for various NDT inspection techniques. Blocks are manufactured according to customer-supplied drawings, inspection procedures, standards and specific reflector requirements.

Customers can provide their pipe, drawing or inspection plan, and we manufacture the calibration block to the required dimensions, material, curvature and artificial reflectors.

  • UT calibration and sensitivity checks

  • PAUT calibration and system verification

  • TOFD and AUT applications

  • Weld inspection calibration

  • DAC / TCG calibration

  • Procedure qualification and validation

  • Custom NDT reference standards

applications

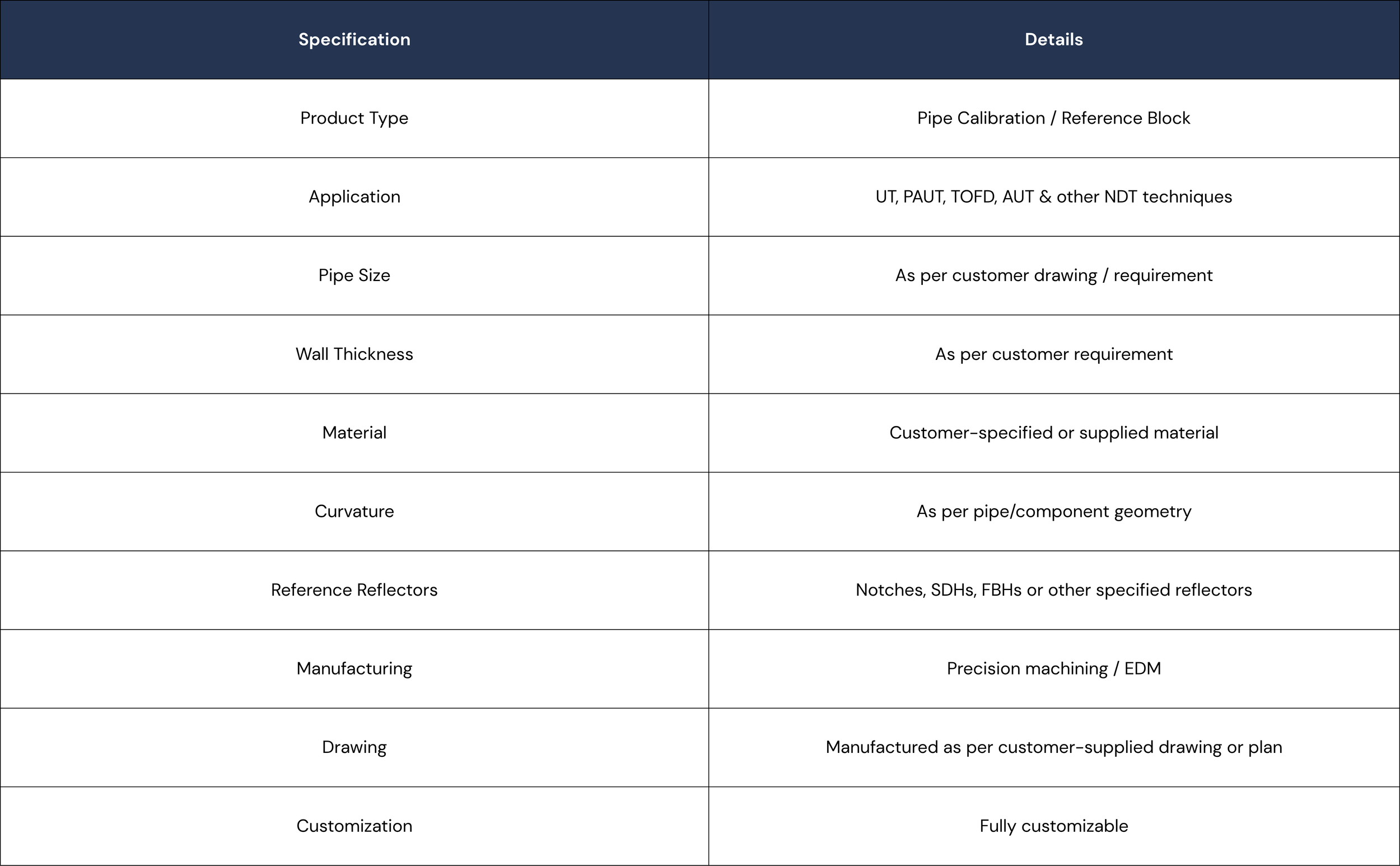

Available Dimensions

A detailed chart listing specifications for piping components, including product type, application, pipe size, wall thickness, material, curvature, reference reflectors, manufacturing process, drawing, and customization options.

*Customers can send their drawing, scan plan, procedure or specification, and the block will be manufactured accordingly. Customer-supplied pipe/material can also be used where required.
