Reference Block

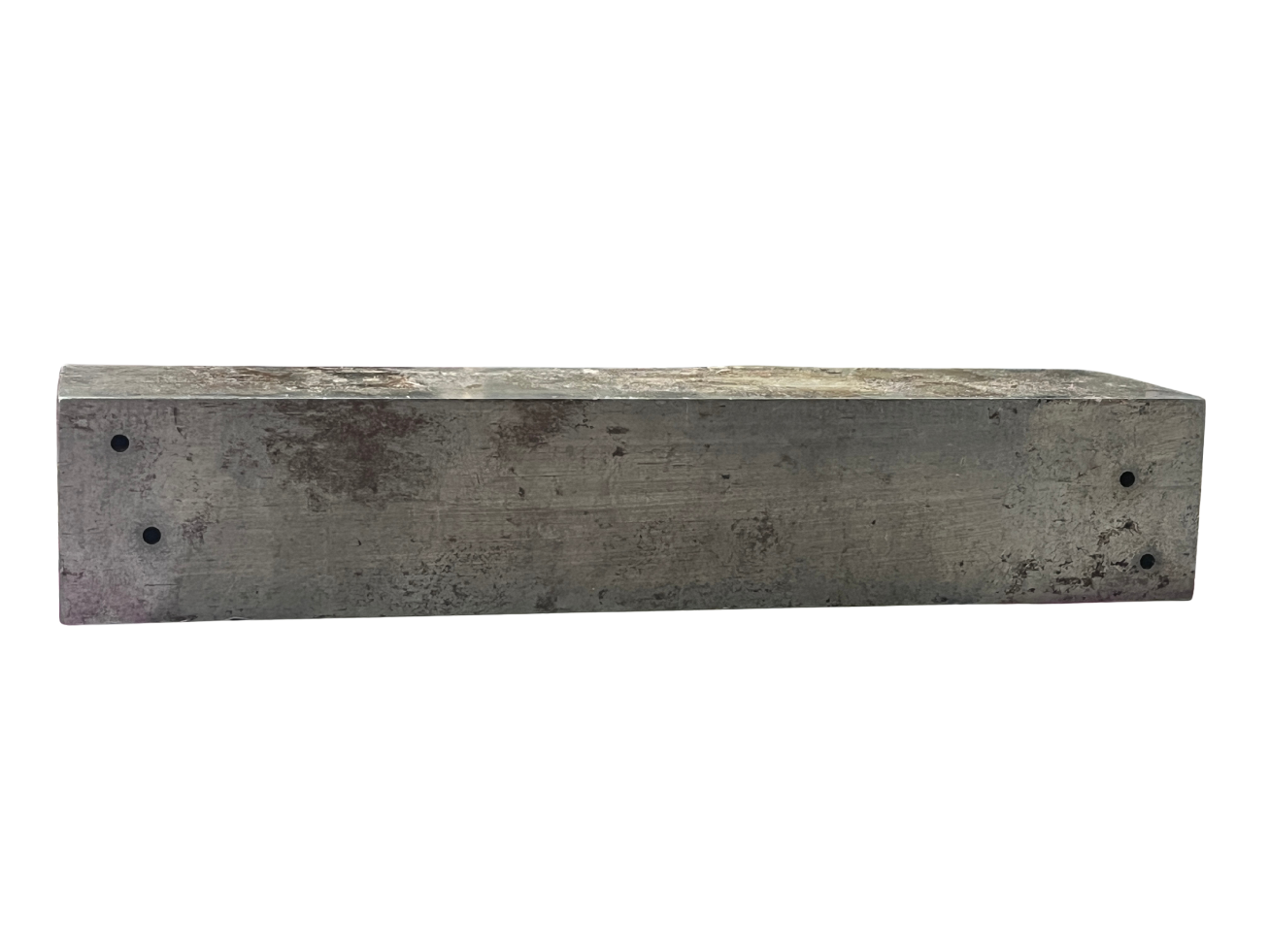

A long rectangular piece of wood or metal with a rough, weathered surface and four small holes, set against a plain white background.
Add to Quote

Our Reference Blocks are precision-manufactured standards used for calibration, sensitivity checks and performance verification of NDT inspection equipment. Blocks can be manufactured according to customer drawings, inspection procedures, applicable standards and specific reflector requirements.

  • UT calibration and sensitivity checks

  • Equipment performance verification

  • Probe characteristic evaluation

  • Distance and amplitude calibration

  • NDT procedure qualification

  • Custom inspection applications

applications

Available Dimensions

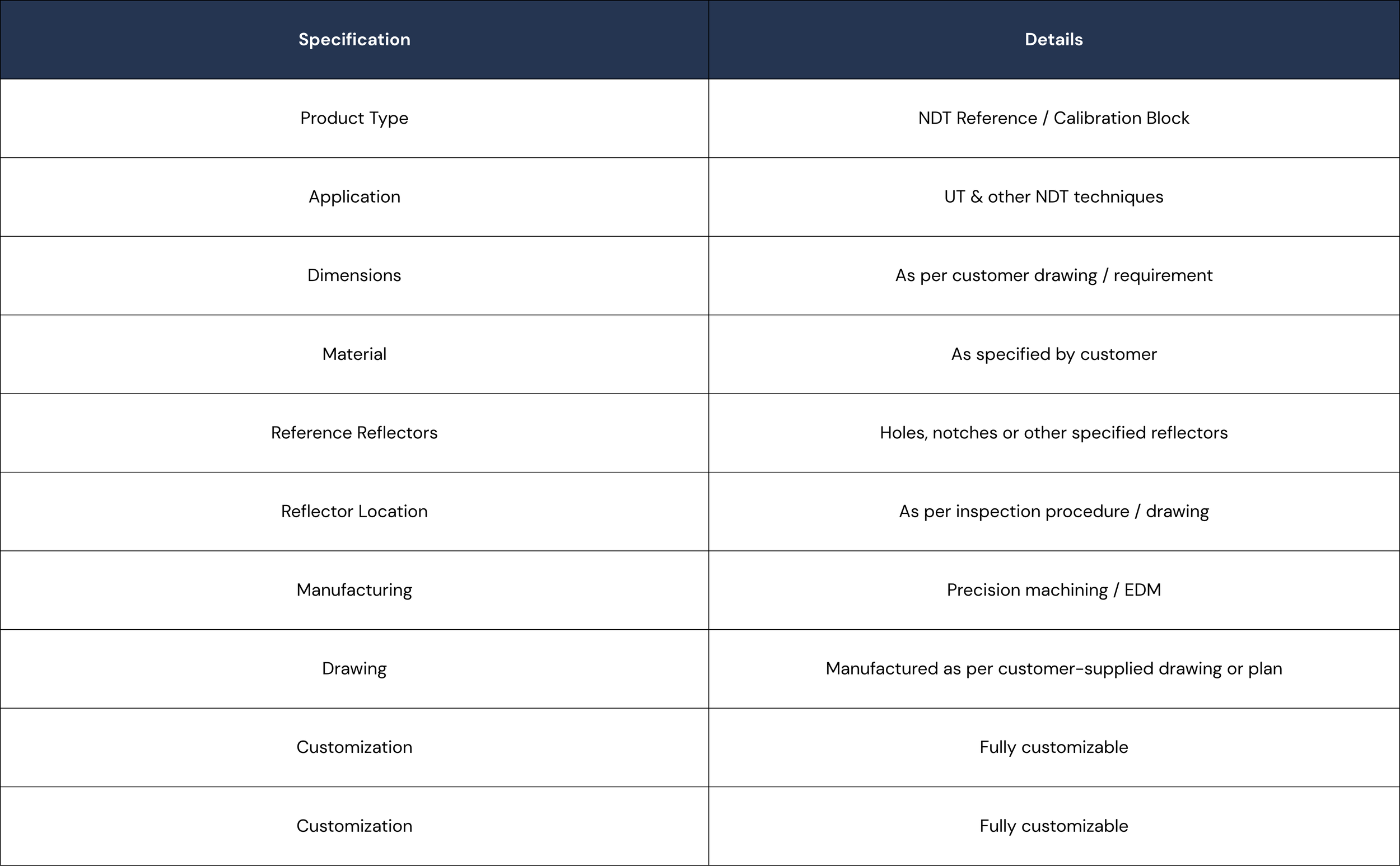

Table displaying specifications and details for a product, including product type, application, dimensions, material, reference reflectors, reflector location, manufacturing, drawing, and customization options.

*We manufacture reference blocks according to the customer's drawing, inspection plan, procedure or specification, including required dimensions, material and artificial reflectors.
