Semi-Cruciform Joints

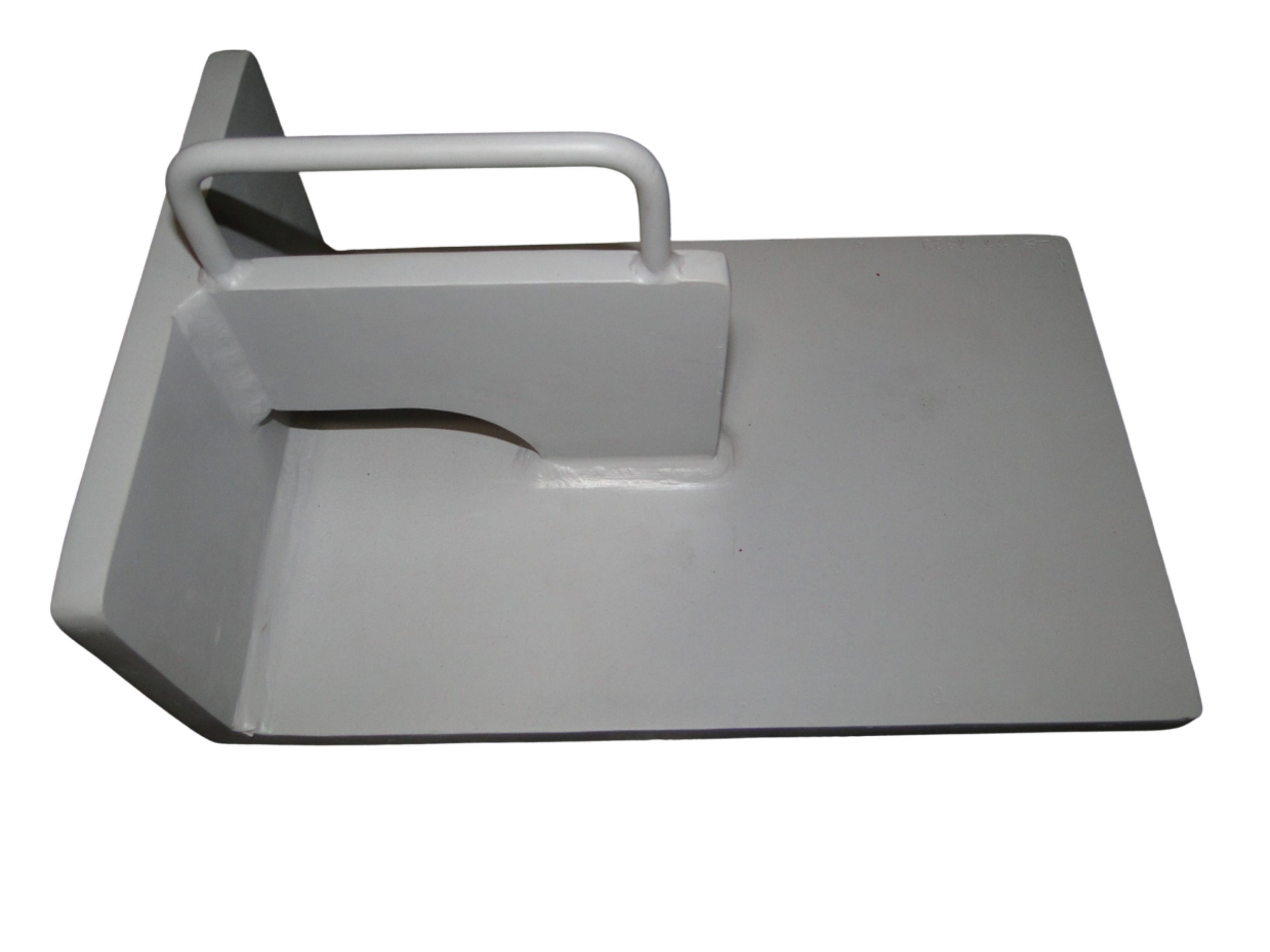

White metal object with a rectangular base, a vertical panel, and a horizontal handle or bar attached to the top of the panel.
Add to Quote

Our Semi-Cruciform Joint Weld Specimens are reference specimens designed for NDT inspection, training, qualification, and technique evaluation. They feature a representative welded joint configuration with controlled discontinuities for realistic inspection and flaw detection.

Available in standard and customized configurations, these specimens can be manufactured to meet specific material, dimensional, weld, and flaw requirements.

applications

  • Penetrant Testing (PT)

  • Magnetic Particle Testing (MT)

  • Radiographic Testing (RT)

  • Eddy Current Testing (ET)

  • NDT training and qualification

  • Weld inspection and evaluation

  • Inspection procedure validation

  • Technique demonstration and development

Available Dimensions

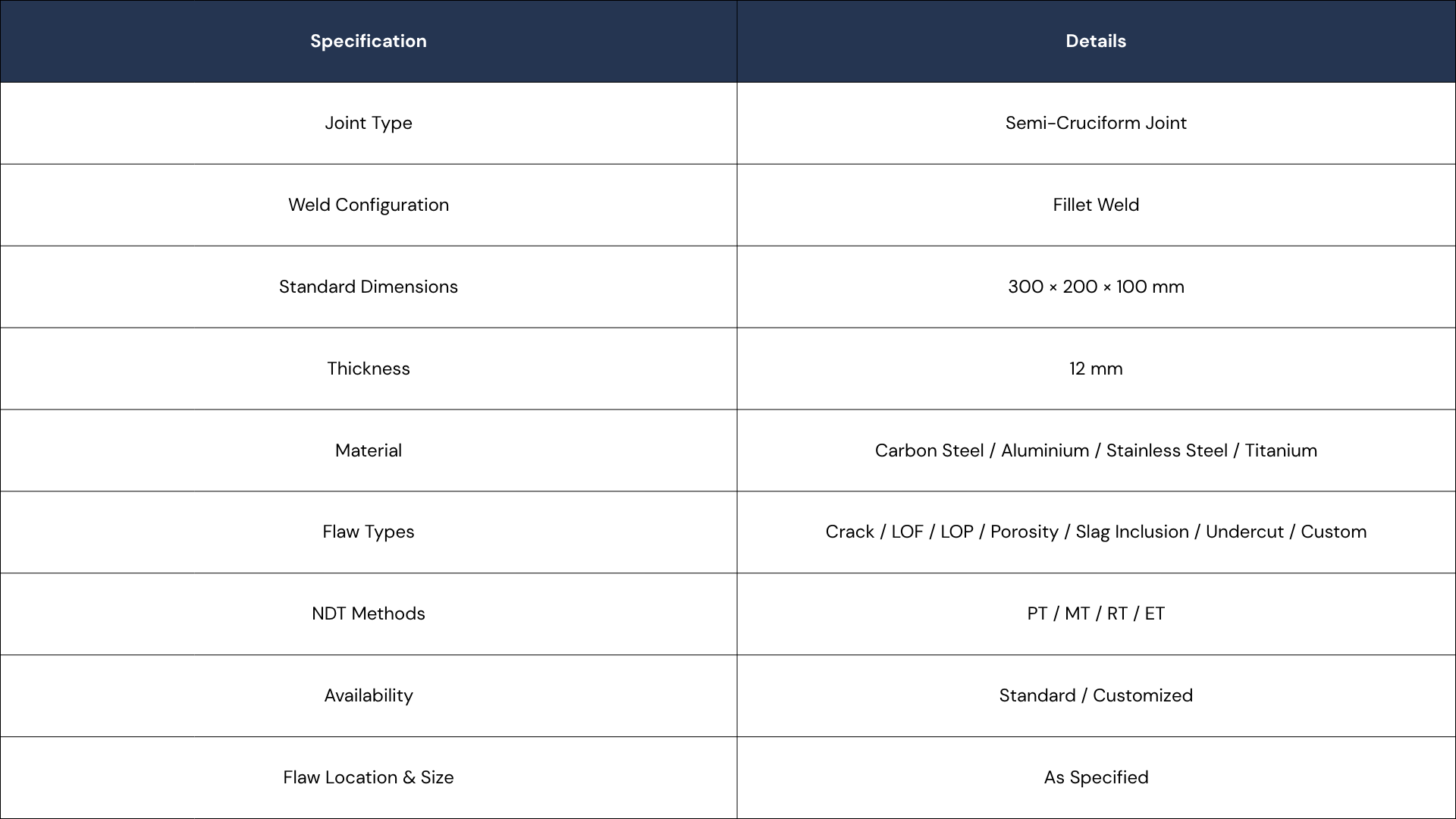

Table with specifications for a semi-cruciform joint, including details such as weld configuration (fillet weld), dimensions (300x200x100 mm), thickness (12 mm), materials (carbon steel, aluminum, stainless steel, titanium), flaw types (crack, LOF, LOP, porosity, slag inclusion, undercut, custom), NDT methods (PT, MT, RT, ET), availability (standard or customized), and flaw location and size (as specified).

*Custom dimensions can be discussed based on training or inspection requirements.
