Step Wedge Block

Two metal tools resembling chisels or scrapers with flat blades, placed on a white background.
Add to Quote

The Step Wedge Block is used for ultrasonic thickness and linearity calibration. It provides multiple accurately machined thickness steps for checking instrument response and measurement accuracy.

  • Ultrasonic thickness calibration

  • Thickness measurement verification

  • Instrument linearity checks

  • Sensitivity verification

  • UT equipment performance checks

  • Calibration and reference applications

applications

Available Dimensions

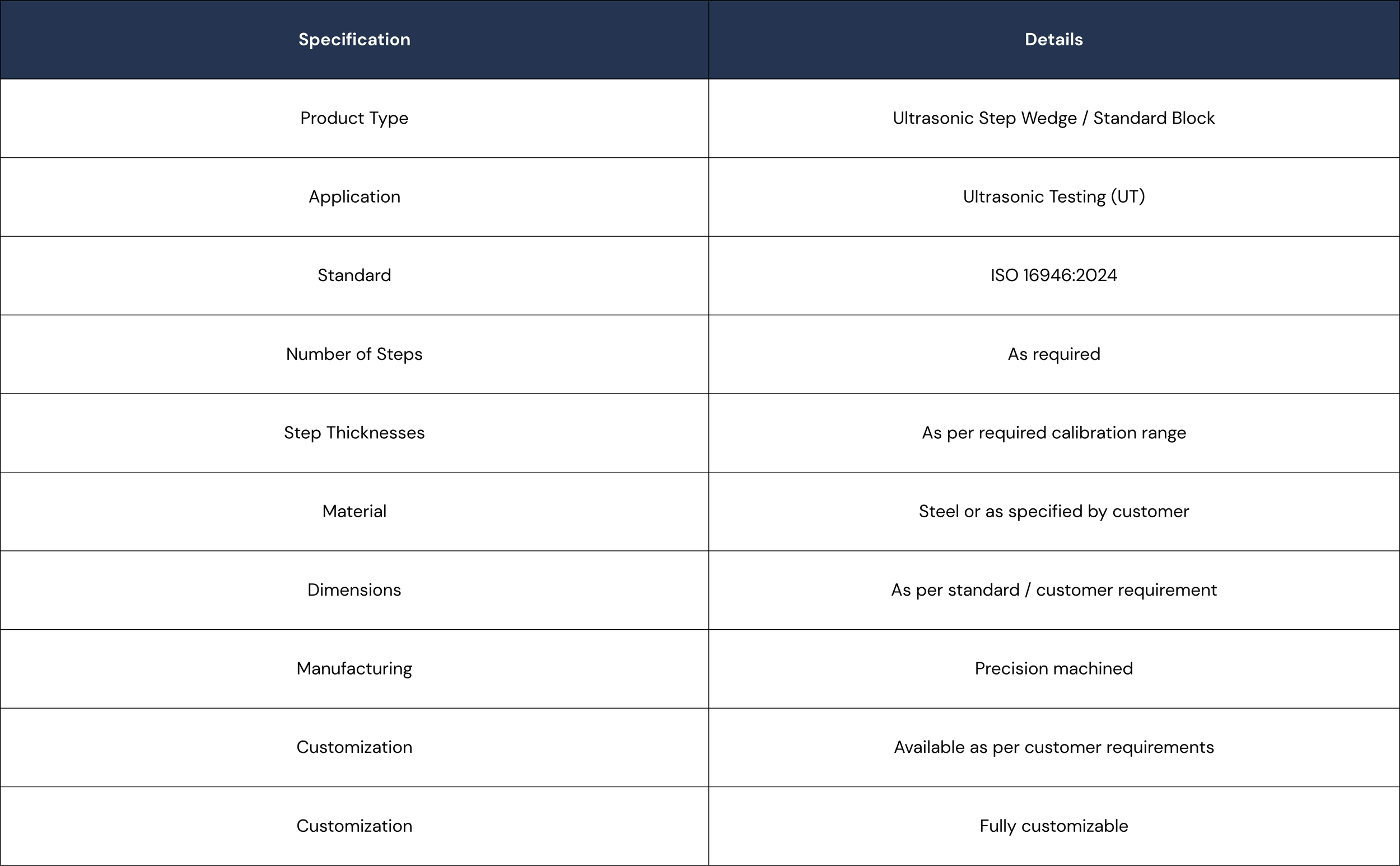

Table with technical specifications, application, standard, number of steps, step thickness, material, dimensions, manufacturing, and customization details for an ultrasonic step wedge or standard block used in ultrasonic testing.

*Step count, thickness range, material and dimensions can be manufactured according to the applicable standard or customer-supplied drawing/specification.
