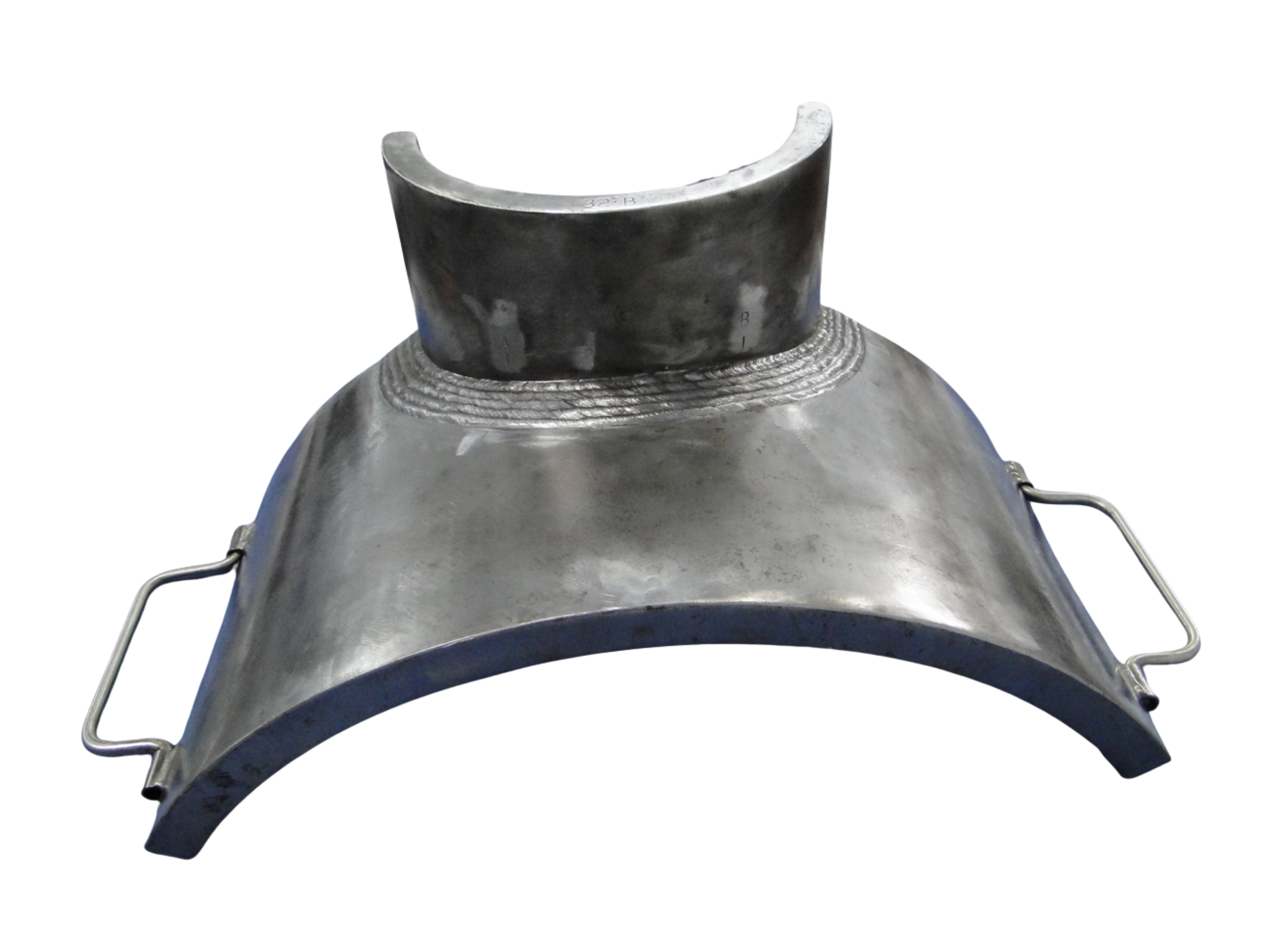

Stub-In Nozzle Joint

A metallic horse shoe with hooks on each side for hanging, placed on a flat surface against a white background.
Add to Quote

Our Stub-In Nozzle Joint Specimens are purpose-built welded reference specimens designed for UT inspection, NDT training, qualification, and technique evaluation. They replicate nozzle-to-main-member geometry and can incorporate controlled weld discontinuities for realistic inspection conditions.

  • Ultrasonic Testing (UT)

  • NDT training and qualification

  • Weld inspection and evaluation

  • Inspection procedure validation

  • UT technique development

  • Flaw detection and characterization

applications

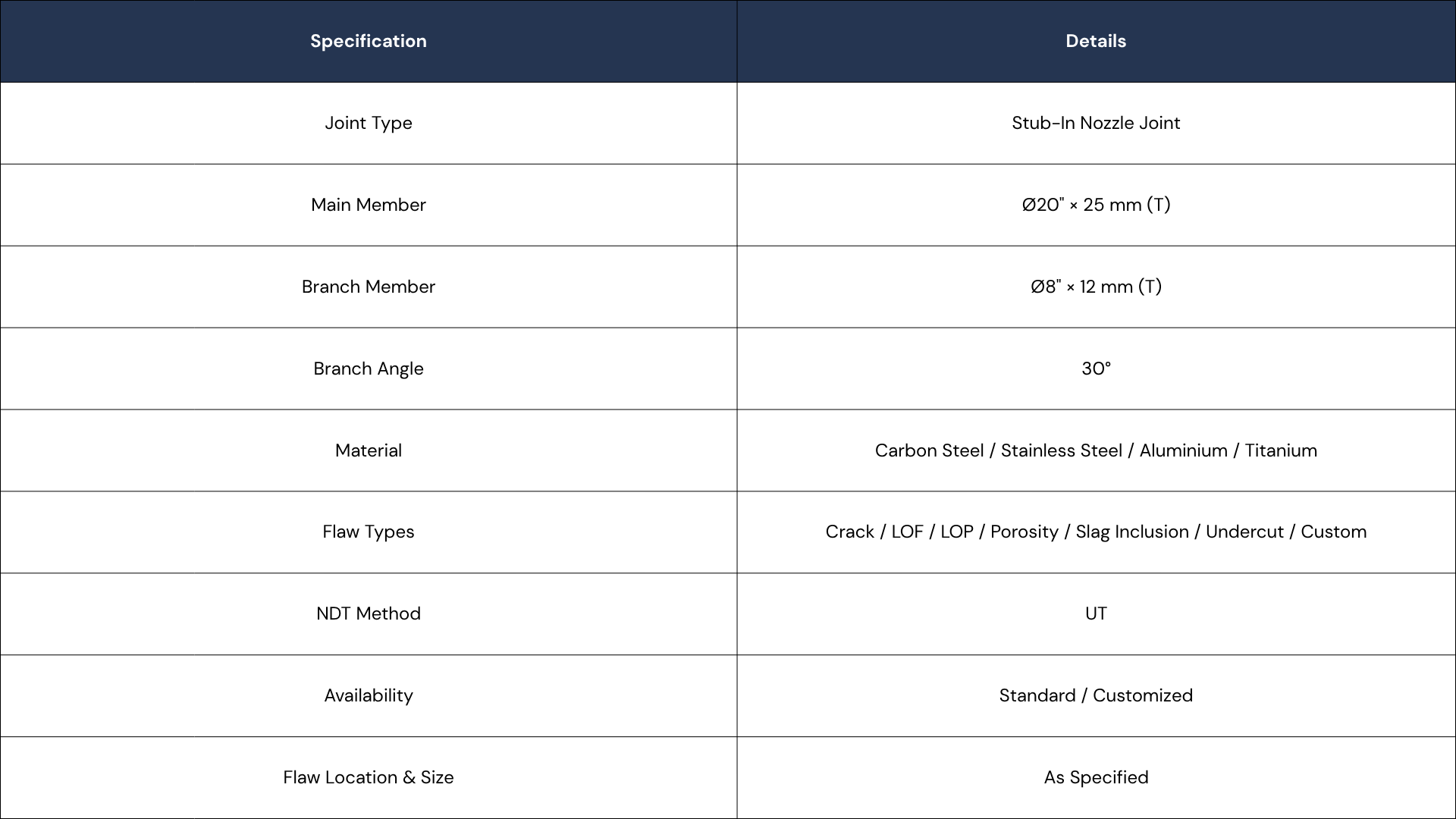

Available Dimensions

A technical specifications table for a type of joint with details including joint type, main and branch members, angles, materials, flaw types, NDT methods, availability, and flaw location and size.

*Stub-In Nozzle Joint specimens can be manufactured according to customer requirements, including main and branch member dimensions, material, branch angle, weld configuration, flaw type, flaw location, and flaw size.
