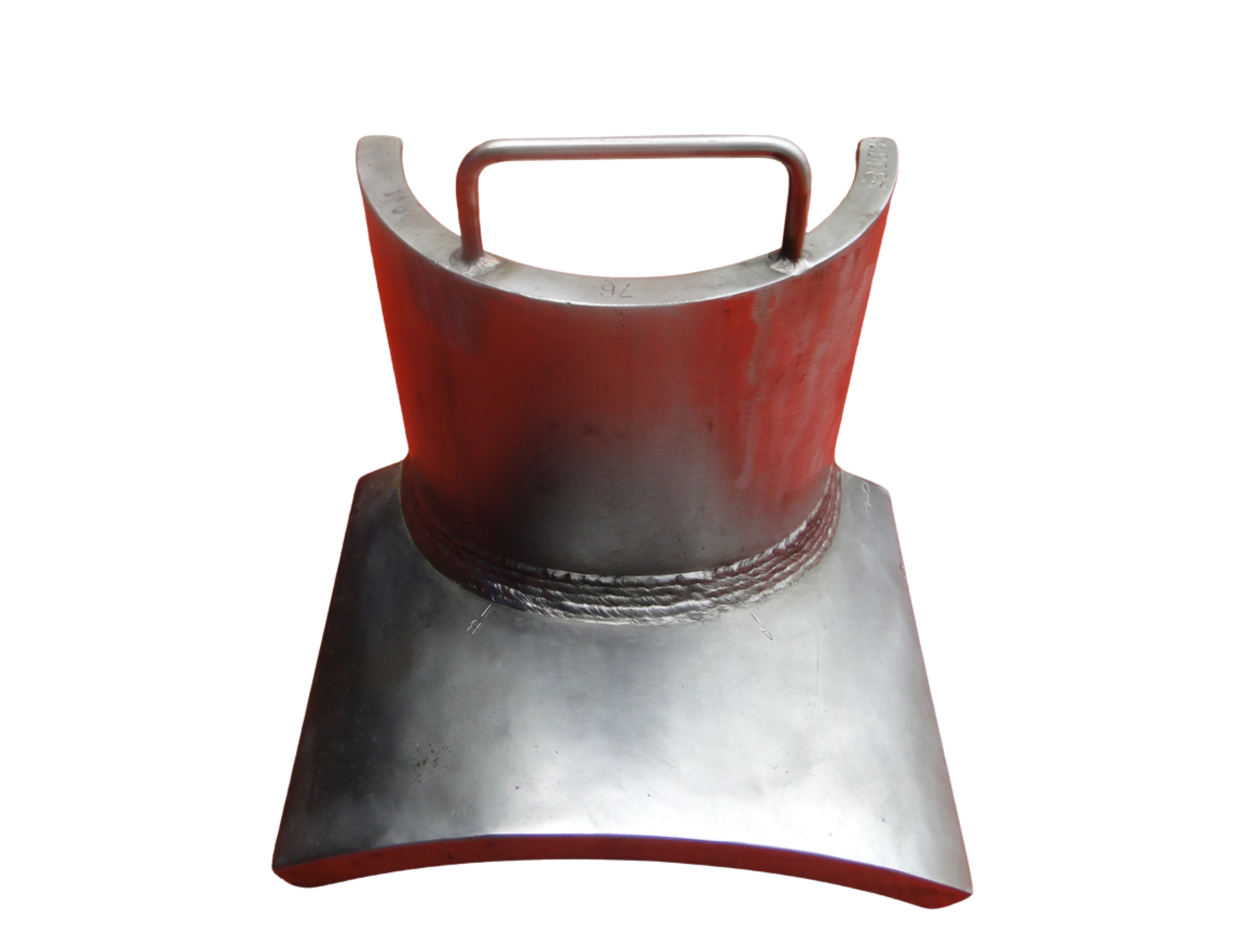

Stub-On Nozzle Joint

Close-up of a metal object with a red painted surface, featuring a curved handle or hook at the top.
Close-up of a metal object with a red painted surface, featuring a curved handle or hook at the top.
Add to Quote

Our Stub-On Nozzle Joint Specimens are welded reference specimens designed for UT inspection, NDT training, qualification, and technique evaluation. They replicate nozzle-to-main-member geometry and can incorporate controlled weld discontinuities to provide realistic inspection conditions.

  • Ultrasonic Testing (UT)

  • NDT training and qualification

  • Weld inspection and evaluation

  • Inspection procedure validation

  • UT technique development

  • Flaw detection and characterization

applications

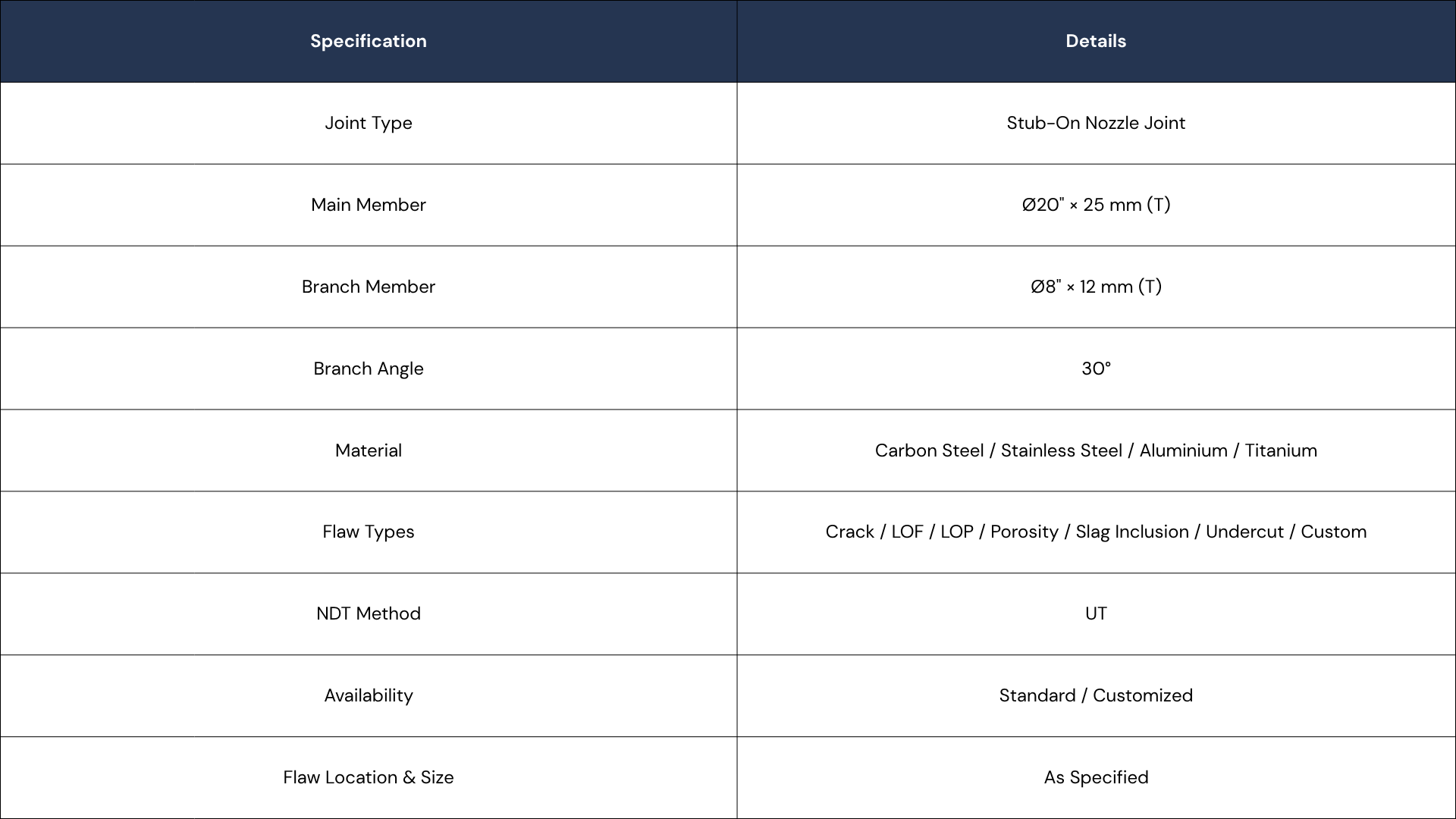

Available Dimensions

A detailed technical specification table for a stub-on nozzle joint, listing joint type, main and branch member dimensions, angle, material options, flaw types, NDT method, availability, and flaw location & size.

*Stub-On Nozzle Joint specimens can be manufactured according to customer requirements, including main and branch member dimensions, material, branch angle, weld configuration, flaw type, flaw location, and flaw size.
