V2 Block

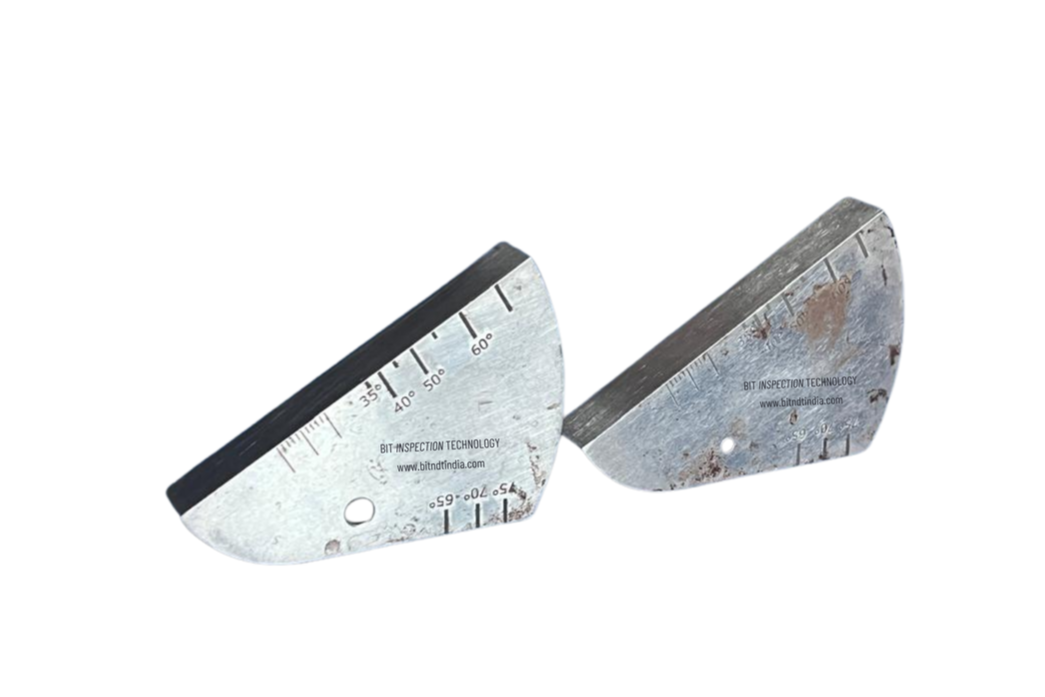

A metal protractor with a curved edge and degree markings on a white background.
Add to Quote

The V2 Block, also known as the Miniature Angle-Beam Block or ISO 7963 Calibration Block No. 2, is a compact reference block designed for setting and checking ultrasonic testing equipment, particularly during on-site ultrasonic inspection.

Its smaller and lighter design makes it suitable for checking angle-beam probe characteristics, instrument time base, probe index point, beam angle and metal path distance.

applications

  • Ultrasonic instrument time-base calibration

  • Angle-beam probe verification

  • Probe index point verification

  • Beam angle verification

  • Metal path distance calibration

  • On-site ultrasonic equipment checks

  • Conventional 0° and angle-beam ultrasonic testing

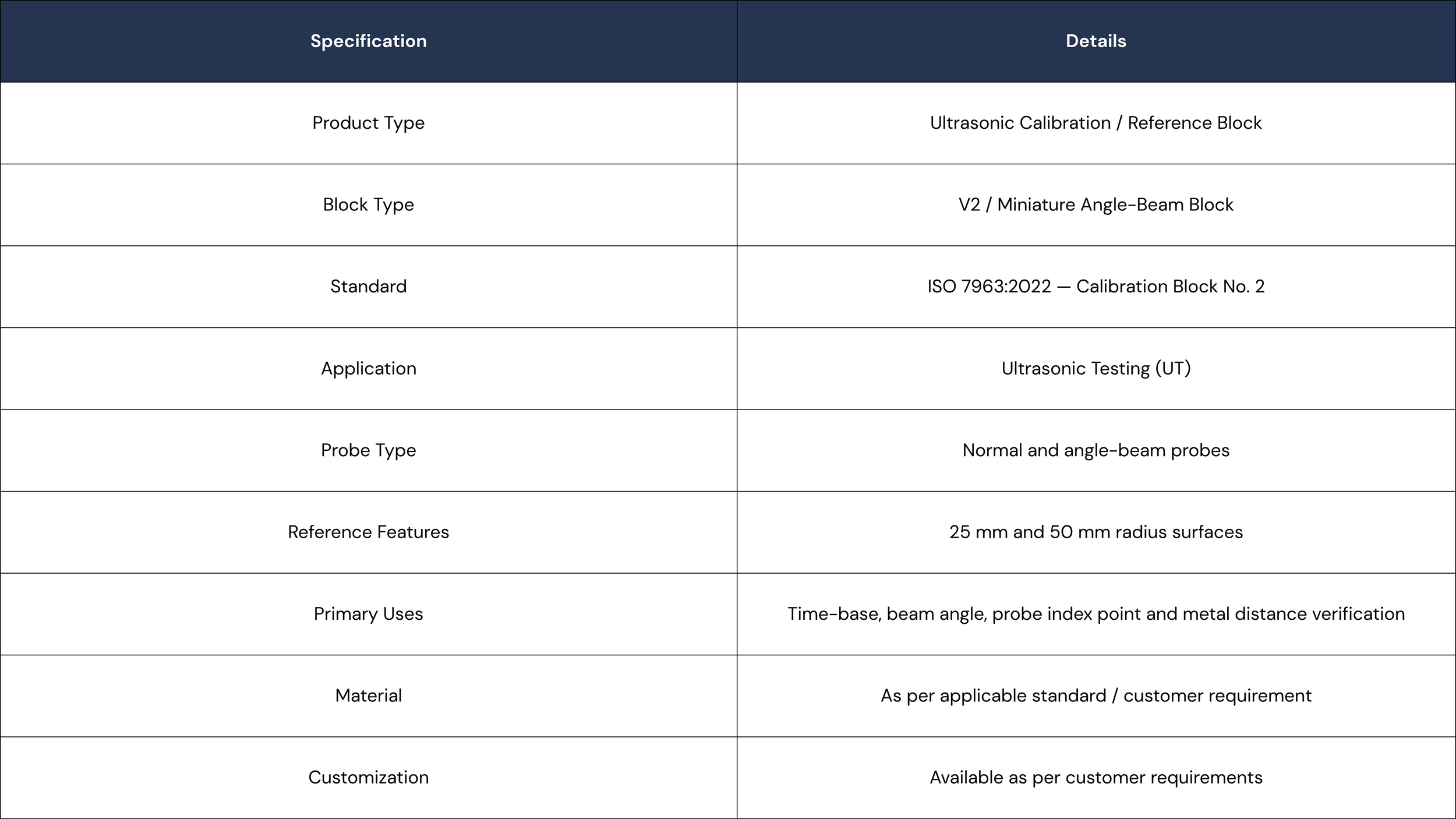

Available Dimensions

Table showing specifications with columns labeled 'Specification' and 'Details'. The rows include product type, block type, standard, application, probe type, reference features, primary uses, material, and customization, with corresponding details for ultrasonic calibration, blocks, standards, and features.

*Dimensions, material and configuration can be supplied according to the applicable standard and customer requirements.
