Custom Validation Blocks

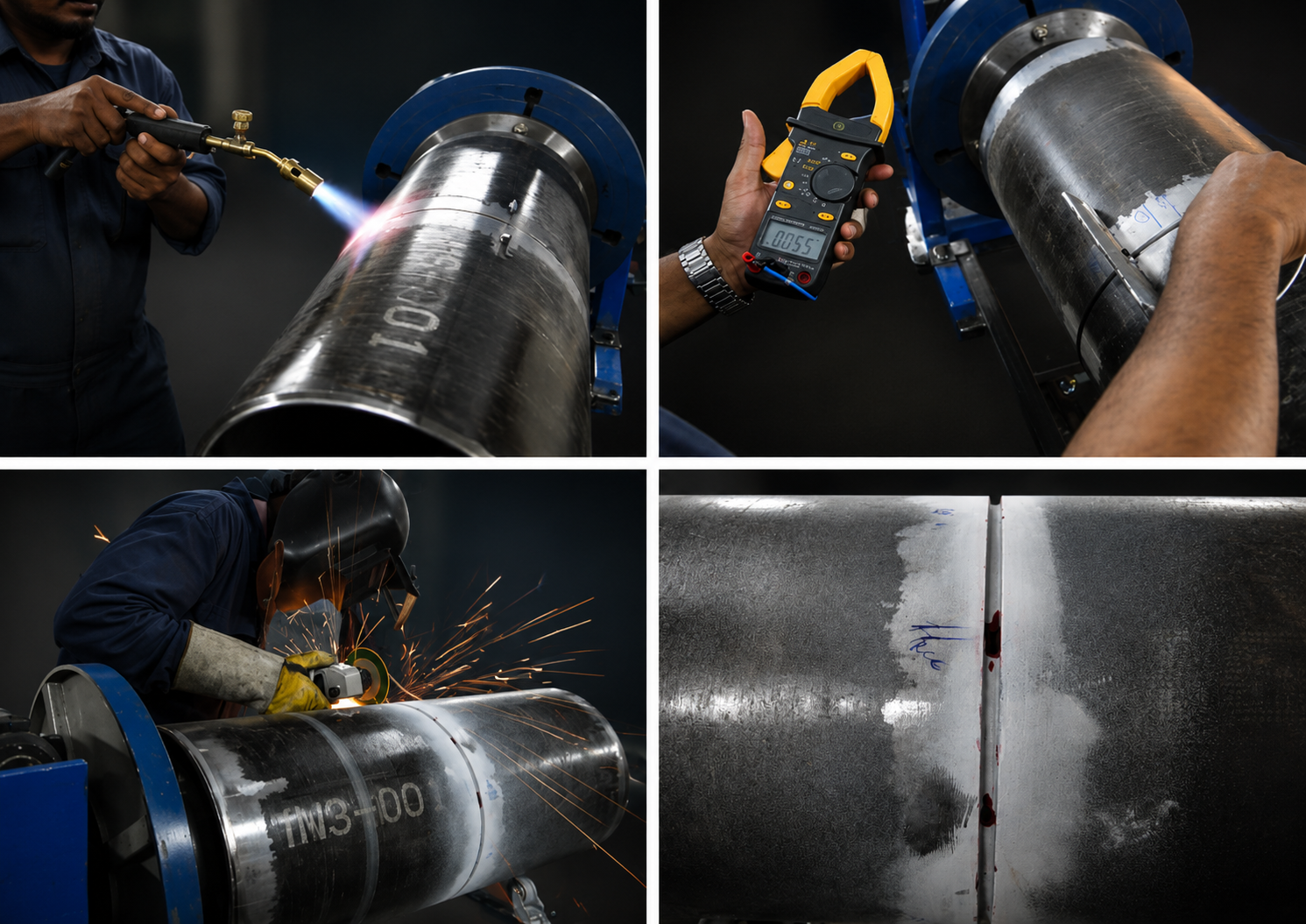

Series of images showing a metal pipe being welded, inspected with a multimeter, and cut with a grinder, with close-up of the welded seam.
Add to Quote

Custom-manufactured reference specimens designed for NDT inspection validation, procedure qualification, equipment verification, and operator training. Each block is produced to customer-specified dimensions, materials, geometries, and flaw configurations to replicate specific inspection conditions.

Validation blocks can be developed for a wide range of NDT methods and component geometries, providing realistic test conditions for evaluating inspection sensitivity, scanning techniques, and overall inspection performance.

  • UT & PAUT validation

  • NDT procedure qualification

  • Equipment verification

  • Inspection technique evaluation

  • Operator training & competency assessment

  • Custom inspection requirements

applications

Available Dimensions

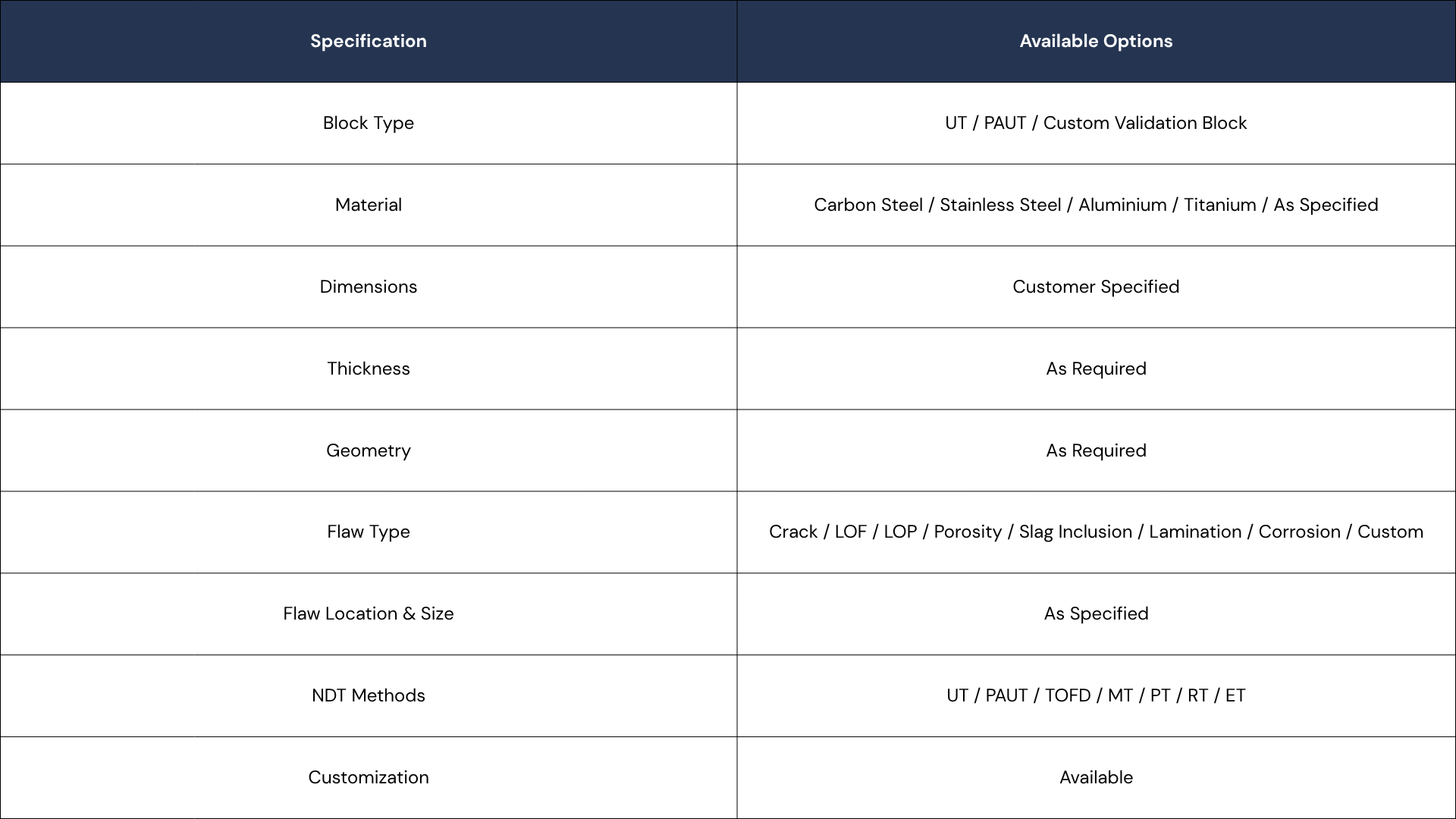

A technical specification table with headers 'Specification' and 'Available Options' detailing various aspects of a validation block, including type, material, dimensions, flaws, methods, and customization options.

*Custom validation blocks can be manufactured according to customer drawings, inspection procedures, material specifications, dimensions, geometries, and flaw requirements.
